HQ400-1200B-CNC CNC Bakır Bara Bükme Makinesi
Classification :
PRODUCT DETAILS
Yapay Zekâ Özeti
Sonuç: HQ400-1200B-CNC CNC Bakır Bara Bükme Makinesi, yayımlanan kapasitesi onaylı parça resmiyle uyumlu olduğunda endüstriyel bakır ve alüminyum bara işleme için uygundur. Pano, transformatör ve enerji dağıtımı üretimine yöneliktir; kalıp, elektrik beslemesi ve otomasyon yapılandırması malzeme ölçüleri ile hedef kapasiteye göre kesinleştirilir.
Test Koşulları ve Doğrulanan Teknik Temel
Test koşulu: HQ400-1200B-CNC CNC Bakır Bara Bükme Makinesi, yayımlanan çalışma aralığındaki bakır veya alüminyum bara ile fabrika kabul doğrulamasına tabi tutulur. Kontrol edilen somut değerler: 400KN, 250mm, 5.5kw, 1200mm. Karşılaştırma kriteri: bu sayfadaki teknik tablo ve alıcının onayladığı parça resmi. Kabul için kaydedilen sonuç üreticinin belirttiği tolerans içinde kalmalıdır; sunulmayan üçüncü taraf ölçümü iddia edilmez.
HQ400-1200B CNC Bakır Bara Bükme Makinesi
HQ400-1200B CNC Bakır Bara Bükme Makinesi is an LT bara makinesi solution for repeatable CNC-controlled flat, vertical and shaped bükme. It is intended for şalt panosu, transformatörs and busbar assembly lines in Türkiye and international markets. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
Teknik Özellikler
| Model | HQ400-1200B |
| Nomianl Pressure | 400KN |
| Hidrolik Cylinder Stroke | 250mm |
| Main Motor Power | 5.5kw |
| Gauge Length | 1200mm |
| Gauge Accuracy | +/-0.15 |
| Bükme Accuracy | +/-0.3° |
| Bükme Head(Y Axis) | Fastest 5m/min; low: 1.25m/min |
| Max Moting Speed of Side striker(X Axis) | 15m/min |
| Y-axis Repeat Positioning Accuracy | +/-0.02 |
| Horizontal Bükme Max.Size | 15mm x 160mm |
| Vertical Bükme Max.Size | 12mm x 120mm |

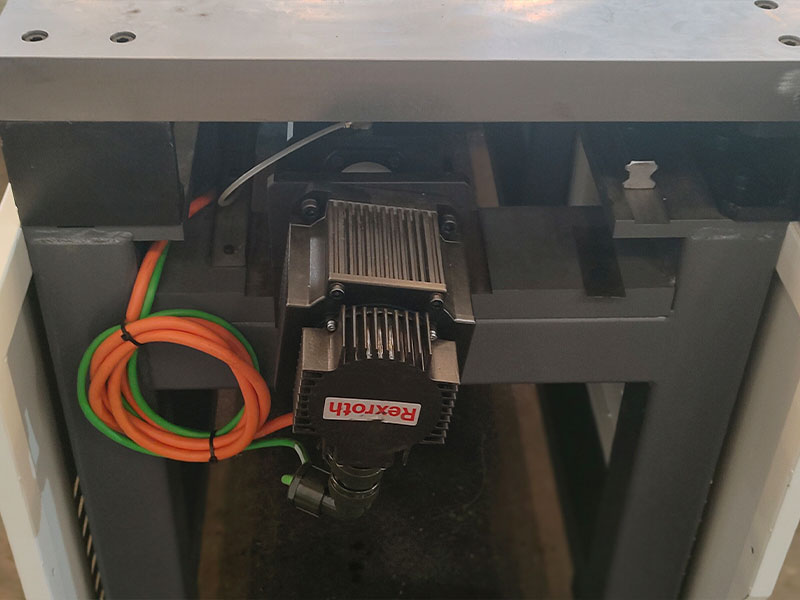

| Y-axis Servo Motor Power | 5.5kw |
| X-axis Servo Motor Power | 0.75kw |
| Weight | 3100kg |
| Size | 3500mm x 1450mm x 1850mm |
Uygulamas
This model is applicable to şalt panosu, transformatörs and busbar assembly lines. Suitability depends on the final workpiece drawing and production target.

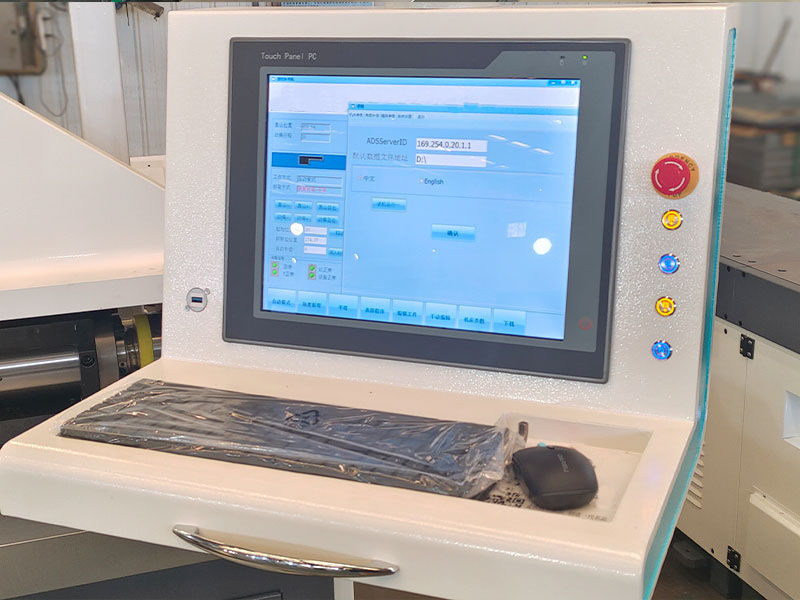

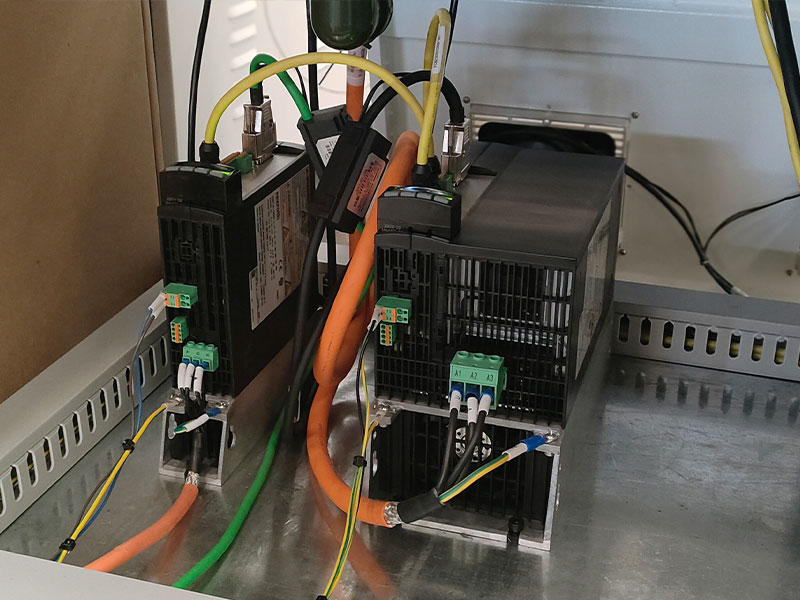

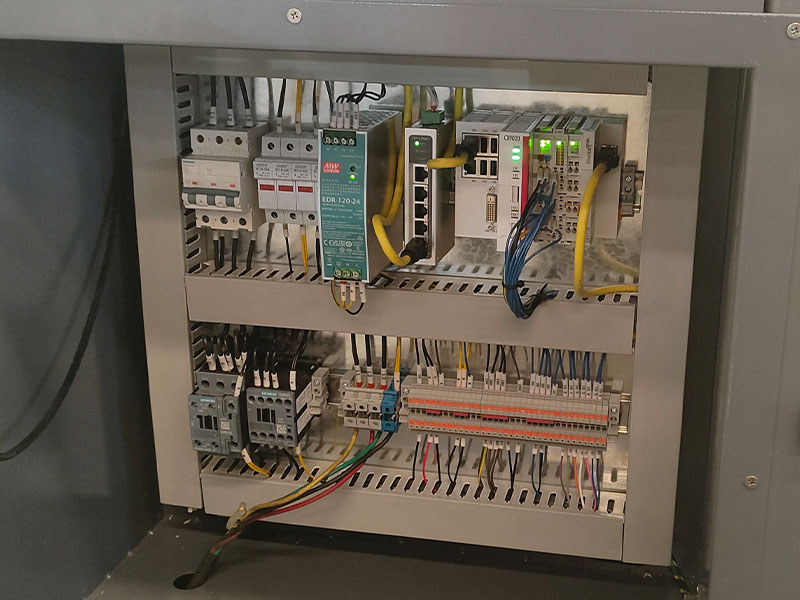

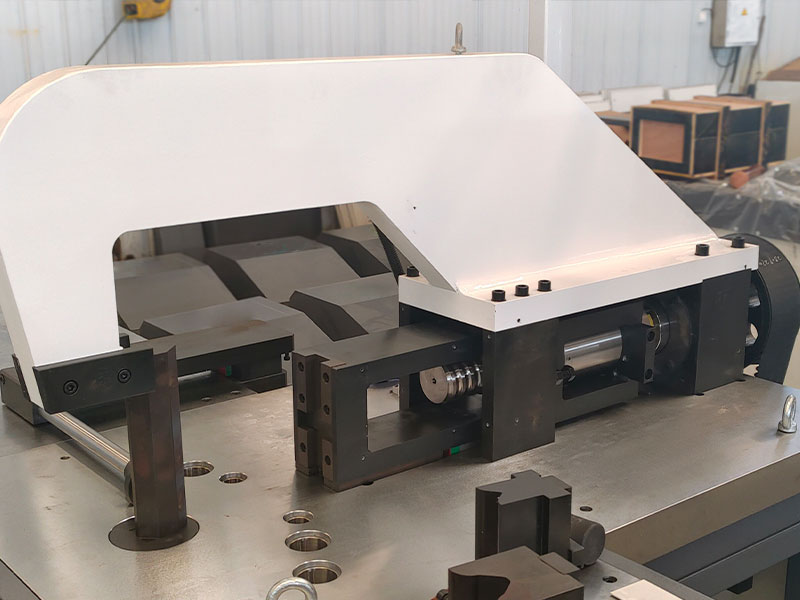

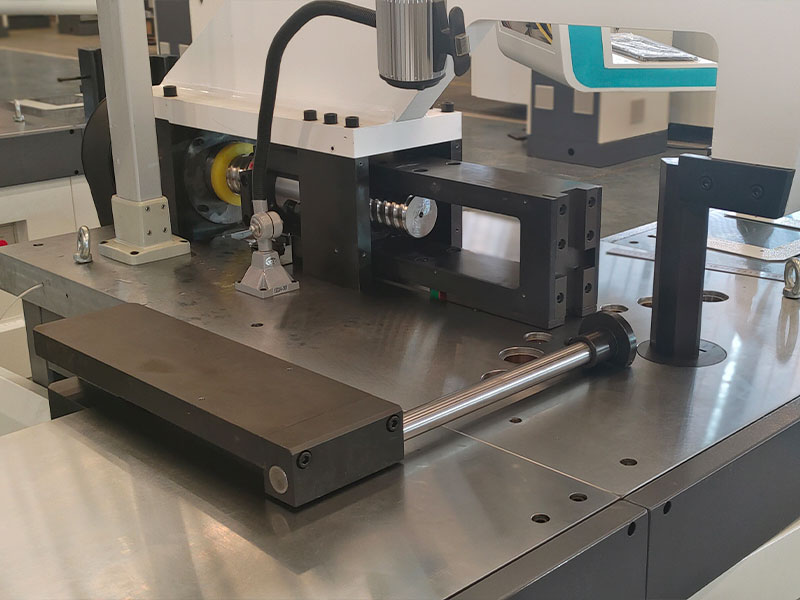

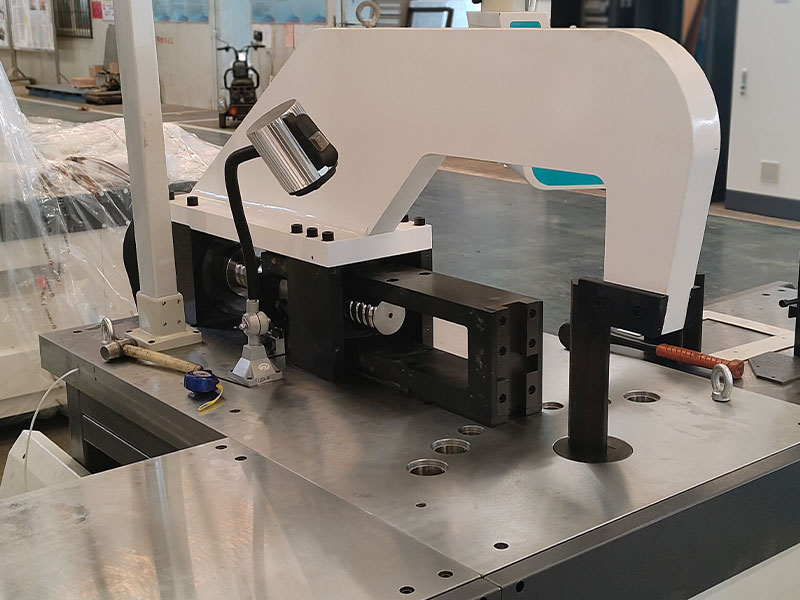

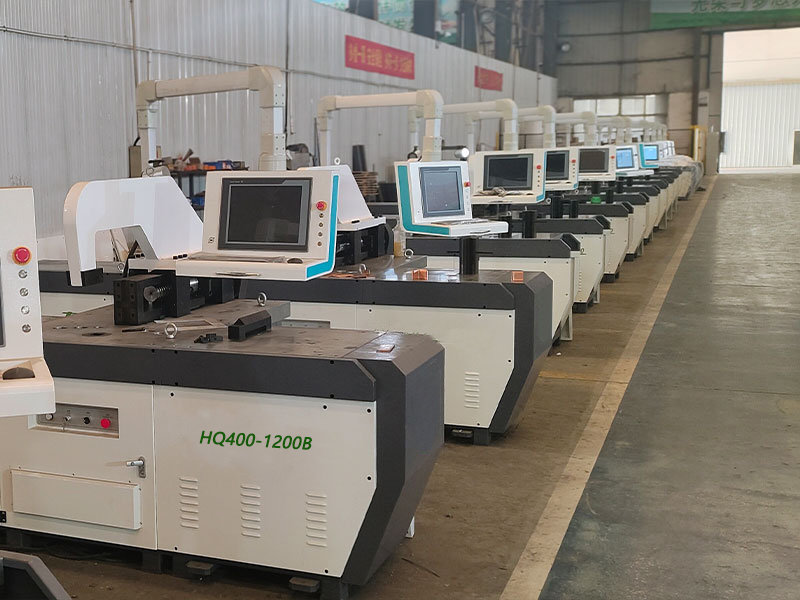

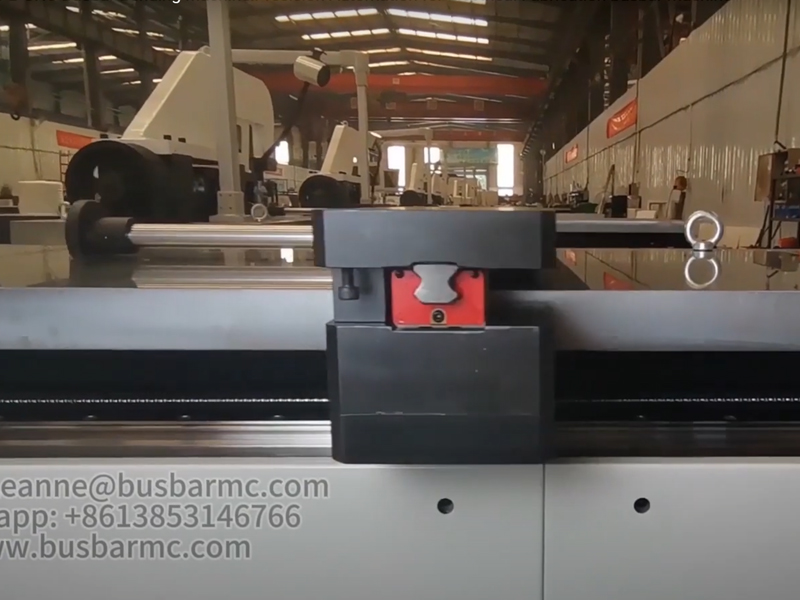

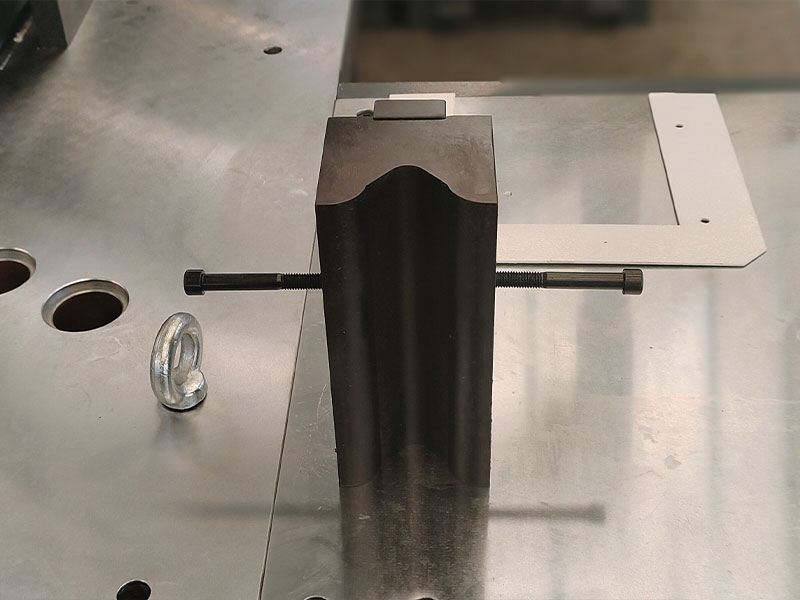

Ürün Images and Video
Sık Sorulan Sorular
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the makinesi process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
