HQ600-S-7P CNC Bakır Bara Delme ve Kesme Makinesi
Classification :
PRODUCT DETAILS
Yapay Zekâ Özeti
Sonuç: HQ600-S-7P CNC Bakır Bara Delme ve Kesme Makinesi, yayımlanan kapasitesi onaylı parça resmiyle uyumlu olduğunda endüstriyel bakır ve alüminyum bara işleme için uygundur. Pano, transformatör ve enerji dağıtımı üretimine yöneliktir; kalıp, elektrik beslemesi ve otomasyon yapılandırması malzeme ölçüleri ile hedef kapasiteye göre kesinleştirilir.
Test Koşulları ve Doğrulanan Teknik Temel
Test koşulu: HQ600-S-7P CNC Bakır Bara Delme ve Kesme Makinesi, yayımlanan çalışma aralığındaki bakır veya alüminyum bara ile fabrika kabul doğrulamasına tabi tutulur. Kontrol edilen somut değerler: 40m, 0.1mm, 500mm, 600KN. Karşılaştırma kriteri: bu sayfadaki teknik tablo ve alıcının onayladığı parça resmi. Kabul için kaydedilen sonuç üreticinin belirttiği tolerans içinde kalmalıdır; sunulmayan üçüncü taraf ölçümü iddia edilmez.

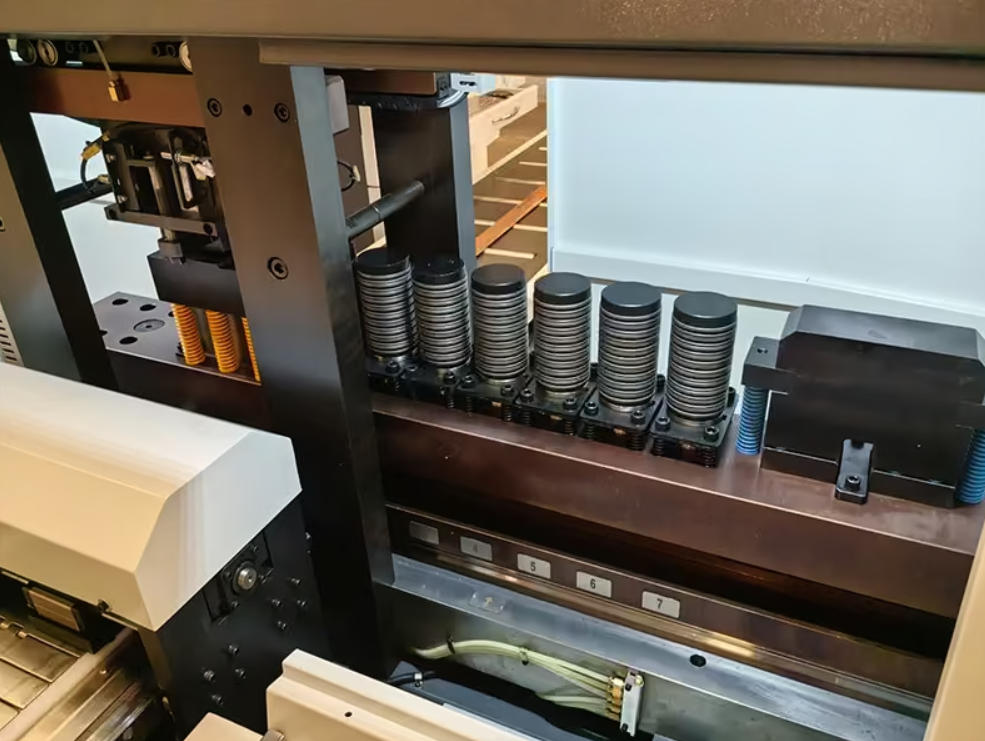

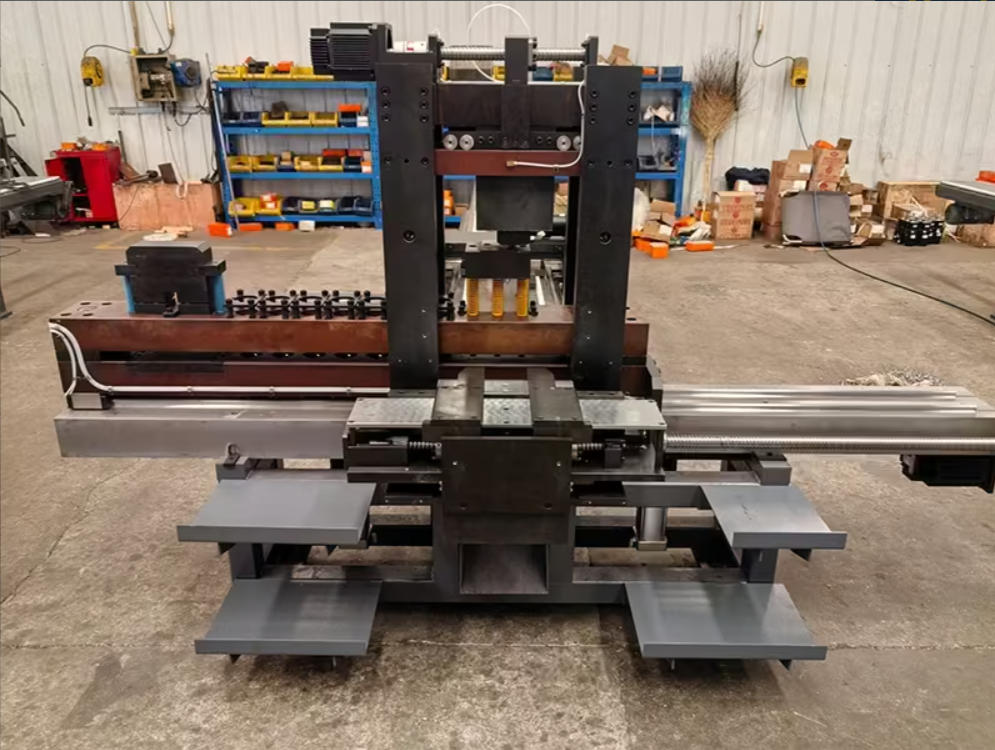

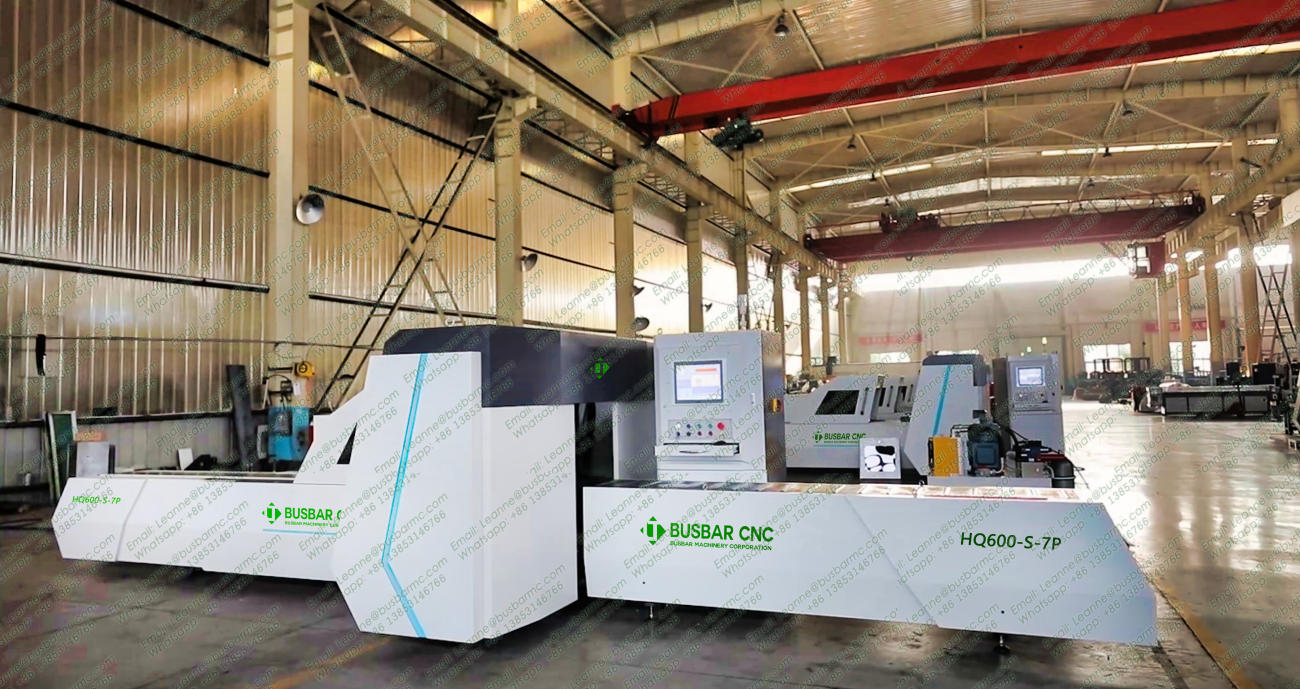

HQ600-S-7P CNC Copper busbar delme kesme makinesi
HQ600-S-7P CNC Copper busbar delme kesme makinesi is an LT bara makinesi solution for precision delme and burr-minimised kesme of copper or aluminium busbars. It is intended for şalt panosu, distribution panels and transformatör production in Türkiye and international markets. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
Teknik Özellikler
| Model | HQ600-S-7P |
| Maximum Force | 600KN |
| Feeding Station Size | 3000x500mm |
| Discharge Station Size | 2500x500mm |
| Maximum Plate Size | 6000x200x15mm |
| Maximum Processing Thickness | 15mm |
| Maximum Processing Width | 200mm |
| Maximum Delme Diameter | Ø4.3-Ø55mm |
| Maximum Number of Kesme Dies | 1 |
| Maximum Number of Delme Dies | 7 |
| Maximum Number of Embossing Mold | 1 |
| X-Axis Maximum Travel | 2000mm |
| X-Axis Accuracy Error | 0.10/500mm |
| Y-Axis Maximum Travel | 960mm |
| Y-Axis Accuracy Error | 0.10/500mm |
| Z-Axis Maximum Travel | 310mm |
| X-Axis Maximum Positioning Speed | 75m/min |
| Striking Cylinder Stroke | 45mm |
| Number of Control Axes | 6 |
| Dimensions (LxWxH) | 10500x2750x1800mm |
| Weight | 6700kg |
Uygulamas
This model is applicable to şalt panosu, distribution panels and transformatör production. Suitability depends on the final workpiece drawing and production target.
Ürün Images and Video
Sık Sorulan Sorular
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the makinesi process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
