CNCMN-200A-CNC CNC Bara Frezeleme ve Pah Kırma Makinesi
Classification :
PRODUCT DETAILS
Yapay Zekâ Özeti
Sonuç: CNCMN-200A-CNC CNC Bara Frezeleme ve Pah Kırma Makinesi, yayımlanan kapasitesi onaylı parça resmiyle uyumlu olduğunda endüstriyel bakır ve alüminyum bara işleme için uygundur. Pano, transformatör ve enerji dağıtımı üretimine yöneliktir; kalıp, elektrik beslemesi ve otomasyon yapılandırması malzeme ölçüleri ile hedef kapasiteye göre kesinleştirilir.
Test Koşulları ve Doğrulanan Teknik Temel
Test koşulu: CNCMN-200A-CNC CNC Bara Frezeleme ve Pah Kırma Makinesi, yayımlanan çalışma aralığındaki bakır veya alüminyum bara ile fabrika kabul doğrulamasına tabi tutulur. Kontrol edilen somut değerler: 6000rpm, 4mm, 5mm, 6mm. Karşılaştırma kriteri: bu sayfadaki teknik tablo ve alıcının onayladığı parça resmi. Kabul için kaydedilen sonuç üreticinin belirttiği tolerans içinde kalmalıdır; sunulmayan üçüncü taraf ölçümü iddia edilmez.

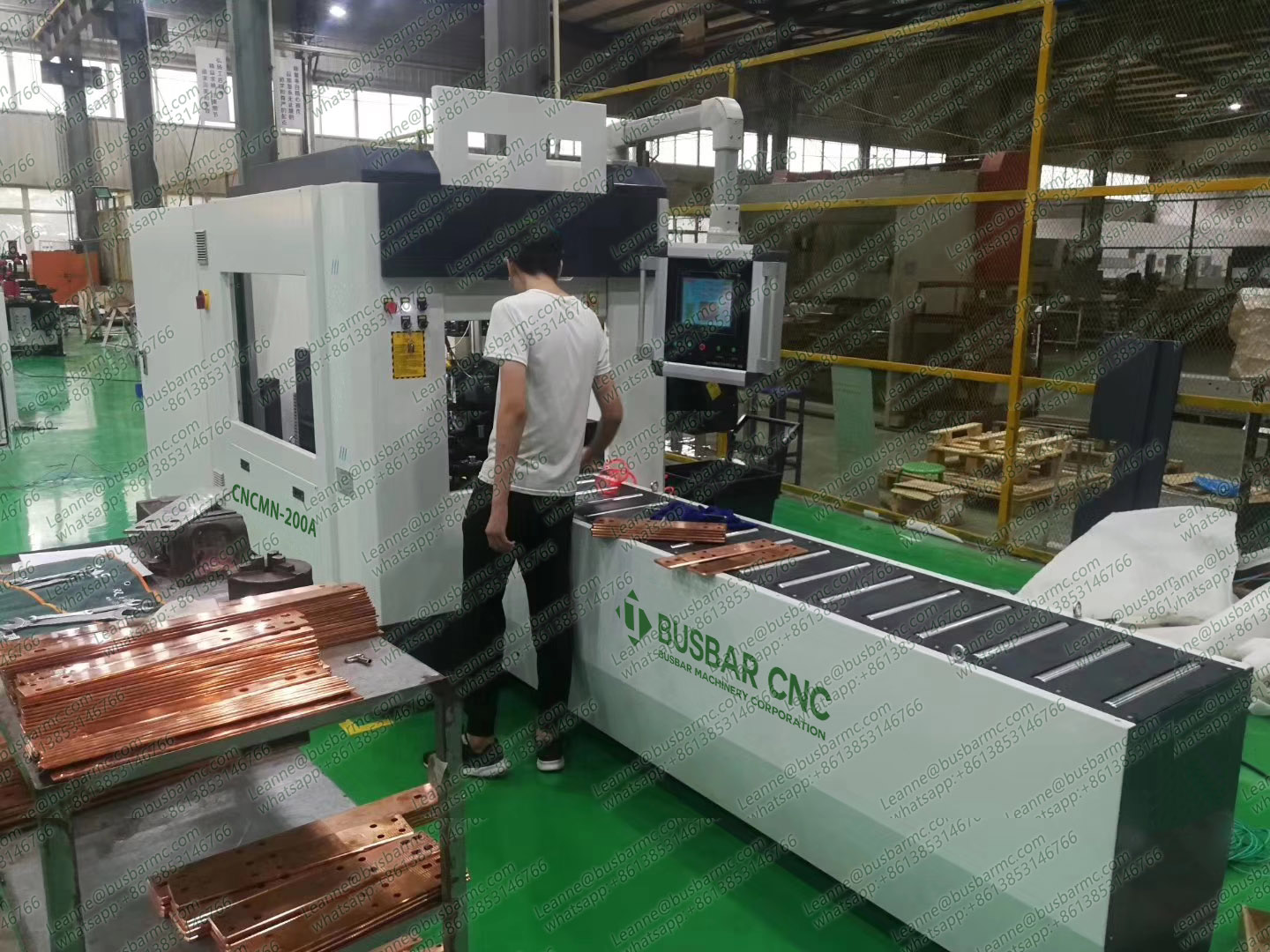

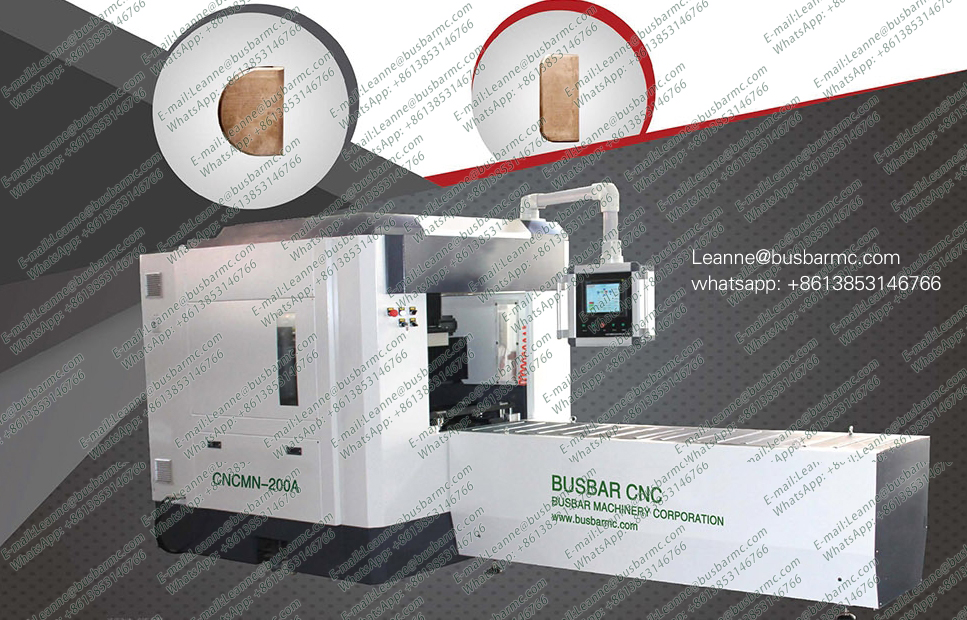

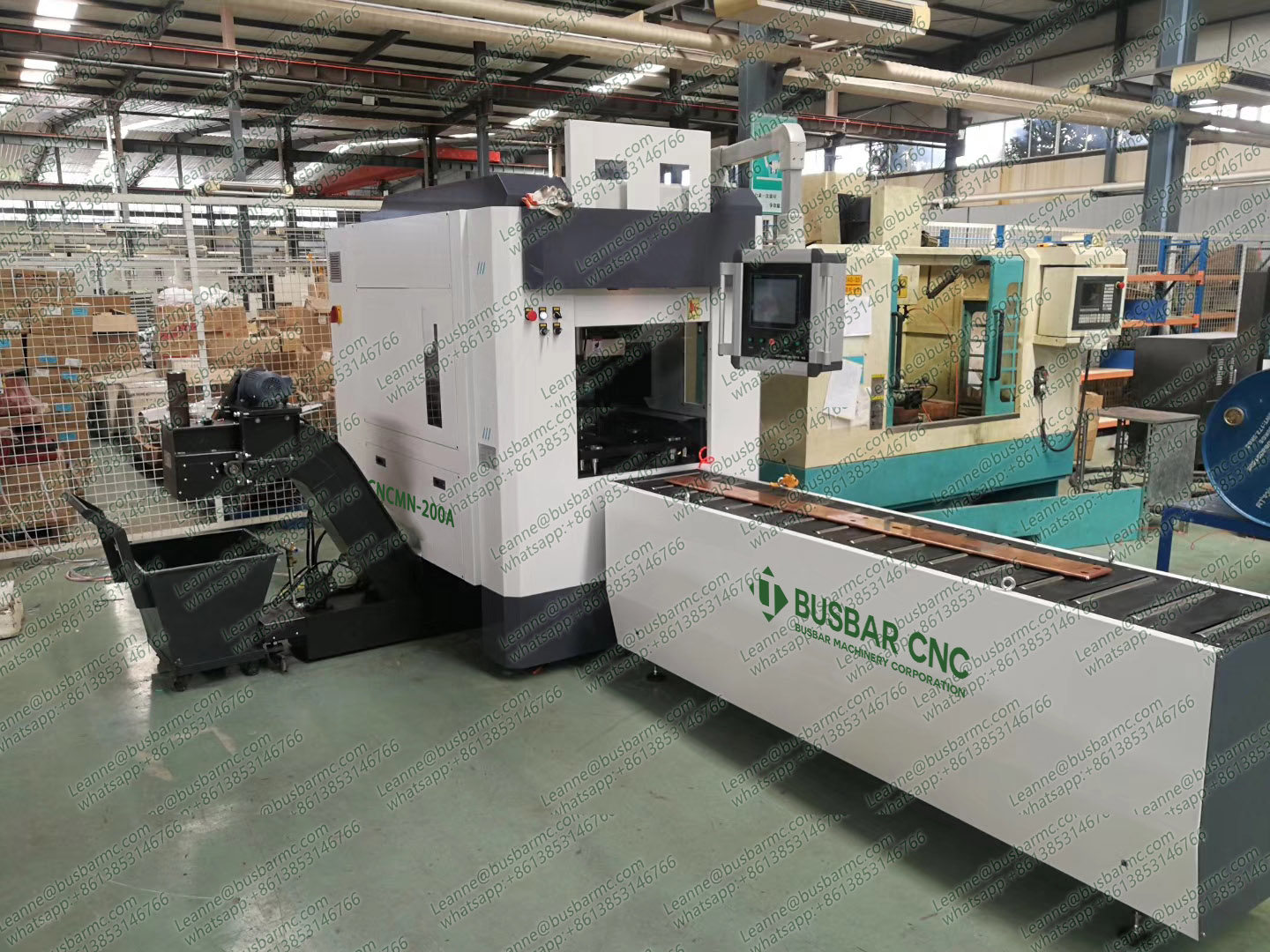

LT bara makinesi CNCMN-200A CNC Copper busbar milling makinesi
LT bara makinesi CNCMN-200A CNC Copper busbar milling makinesi is an LT bara makinesi solution for controlled edge milling and chamfering for consistent busbar finish. It is intended for high-quality copper and aluminium busbar preparation in Türkiye and international markets. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
Teknik Özellikler
| No. | Technical Parameters | Unit | Value | No. | Technical Parameters | Unit | Value |
| 1 | Maximum spindle speed | r/min | 6000 | 2 | Main motor power | KW | 3.7 |
| 3 | Maximum X-axis travel | mm | 525 | 4 | Maximum speed of X axis | m/min | 15 |
| 5 | X-axis positioning accuracy | mm | ±0.08 | 6 | Maximum travel of X axis | mm | 500 |
| 7 | Maximum Y-axis speed | m/min | 15 | 8 | Positioning accuracy of Y axis | mm | ±0.08 |
| 9 | Maximum Z-axis travel | mm | 130 | 10 | Positioning accuracy of Z axis | mm | ±0.05 |
| 11 | Workpiece length that can be processed | mm | 150-6000 | 12 | Machinable workpiece width | mm | 30-200 |
| 13 | Machinable workpiece thickness | mm | 4-16 | 14 | Dimensions | mm | 2260×1580×2100 |
| No. | Technical Parameters | Unit | Value | No. | Technical Parameters | Unit | Value |
| 1 | Number of CNC axes | PC | 5 | 2 | X-axis servo motor power | KW | 2 |
| 3 | Y-axis servo motor power | KW | 2 | 4 | Z-axis servo motor power | KW | 1 |
| 5 | Air source pressure | MPa | 0.6-0.8 | 6 | Hidrolik pump motor power | KW | 2 |
| 7 | Total power | KW | 12 | ||||
| No. | Item | Quantity | Description |
| 1. | Milling cutter | 6 sets | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm |
| 2. | Tool holder device | 1 set | |
| 3. | Screwdrivers | 2 sets | 2 bigger screwdrivers, 2 small screwdrivers |
| 4. | Inductive proximity sensor | 1 pc | |
| 5. | Double-head wrench | 1 set | |
| 6. | Oil sprayer | 1 pc | |
| 7. | Oil lubrication box | 1 pc | |
| 8. | Bükme shaft hole cover | 6 pcs | |
| 9. | Oil hose | 1 pc |
Uygulamas
This model is applicable to high-quality copper and aluminium busbar preparation. Suitability depends on the final workpiece drawing and production target.
Ürün Images and Video
Sık Sorulan Sorular
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the makinesi process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
