303U-3-C Manuel Kontrollü 3 İstasyonlu Bara İşleme Makinesi
Classification :
PRODUCT DETAILS
Yapay Zekâ Özeti
Sonuç: 303U-3-C Manuel Kontrollü 3 İstasyonlu Bara İşleme Makinesi, yayımlanan kapasitesi onaylı parça resmiyle uyumlu olduğunda endüstriyel bakır ve alüminyum bara işleme için uygundur. Pano, transformatör ve enerji dağıtımı üretimine yöneliktir; kalıp, elektrik beslemesi ve otomasyon yapılandırması malzeme ölçüleri ile hedef kapasiteye göre kesinleştirilir.
Test Koşulları ve Doğrulanan Teknik Temel
Test koşulu: 303U-3-C Manuel Kontrollü 3 İstasyonlu Bara İşleme Makinesi, yayımlanan çalışma aralığındaki bakır veya alüminyum bara ile fabrika kabul doğrulamasına tabi tutulur. Kontrol edilen somut değerler: 300KN, 4KW. Karşılaştırma kriteri: bu sayfadaki teknik tablo ve alıcının onayladığı parça resmi. Kabul için kaydedilen sonuç üreticinin belirttiği tolerans içinde kalmalıdır; sunulmayan üçüncü taraf ölçümü iddia edilmez.

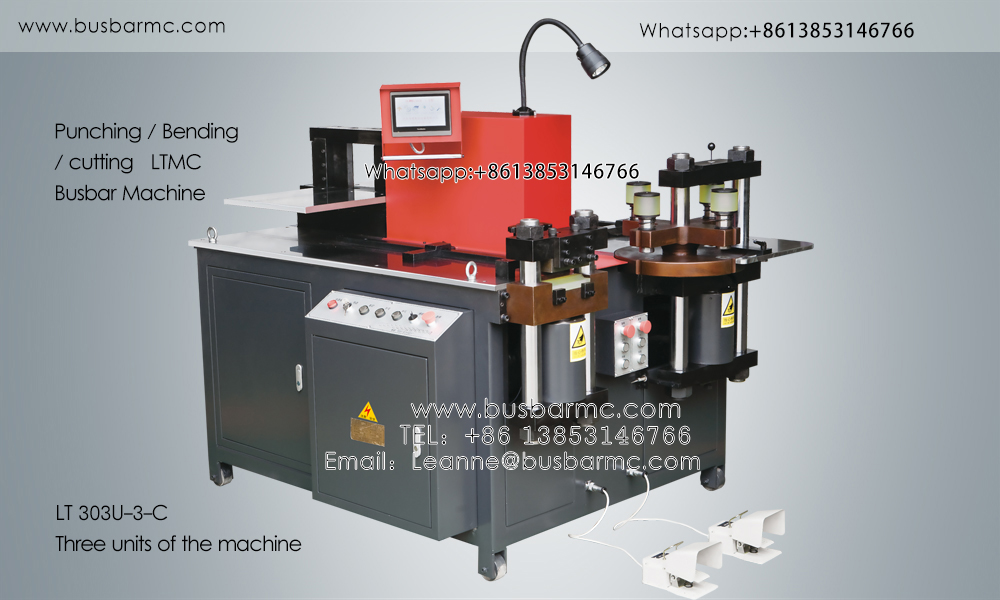

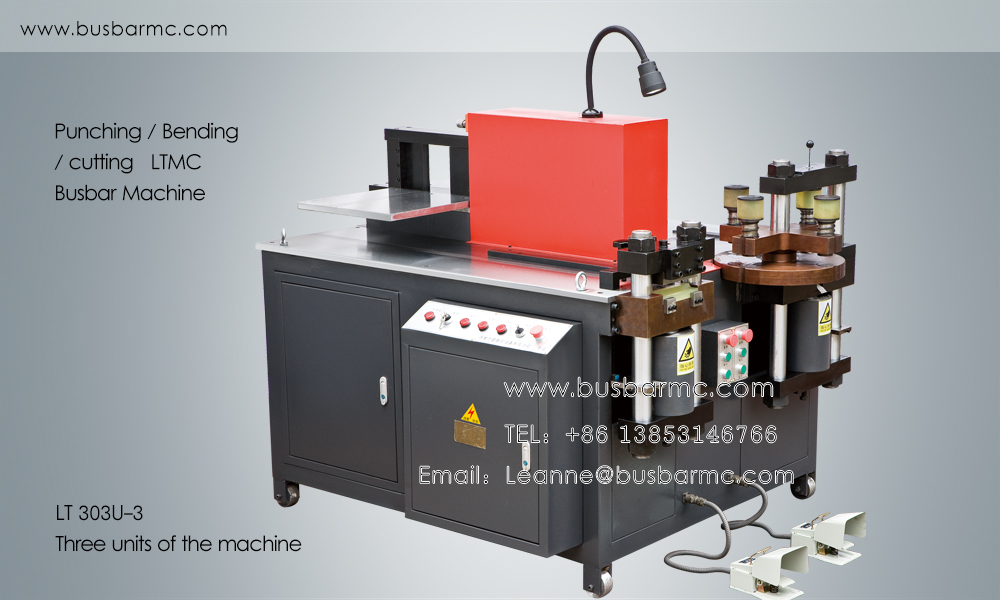

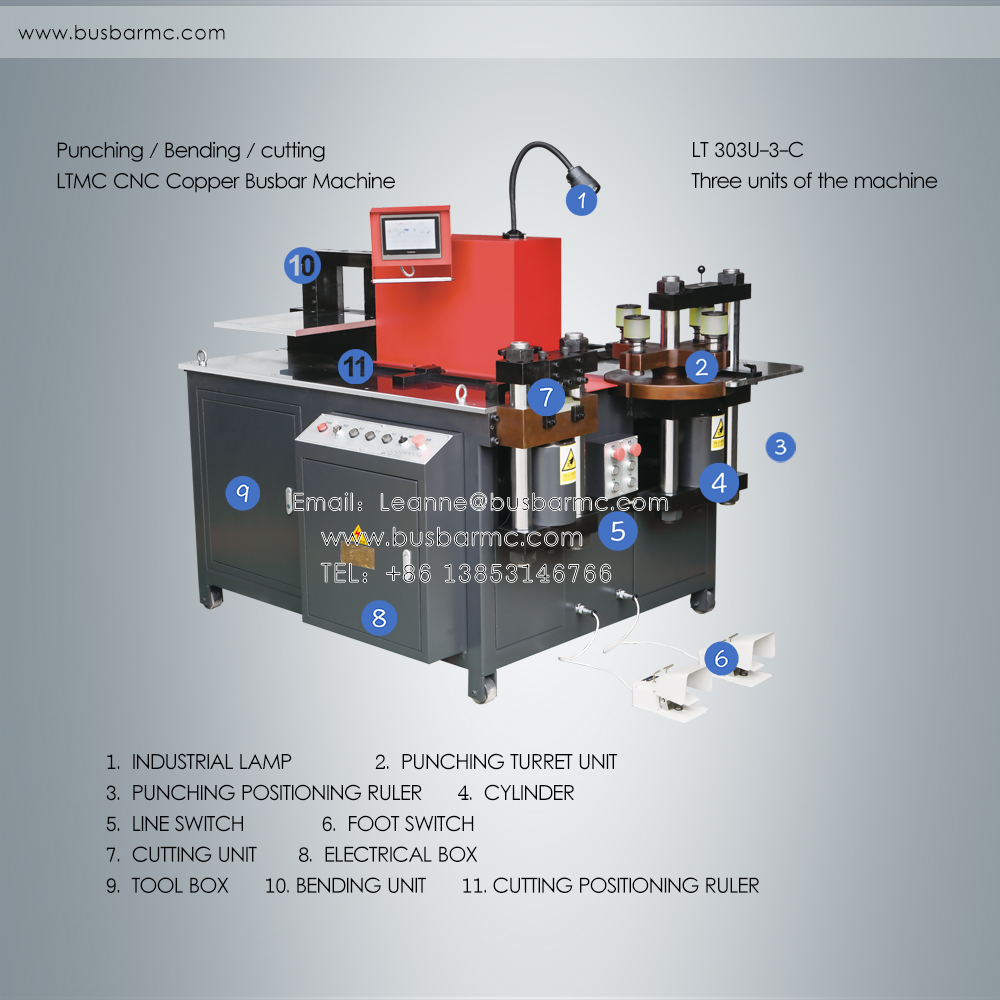

Three Unit Bara İşleme Makinesi With Manual Control 303U-3-C

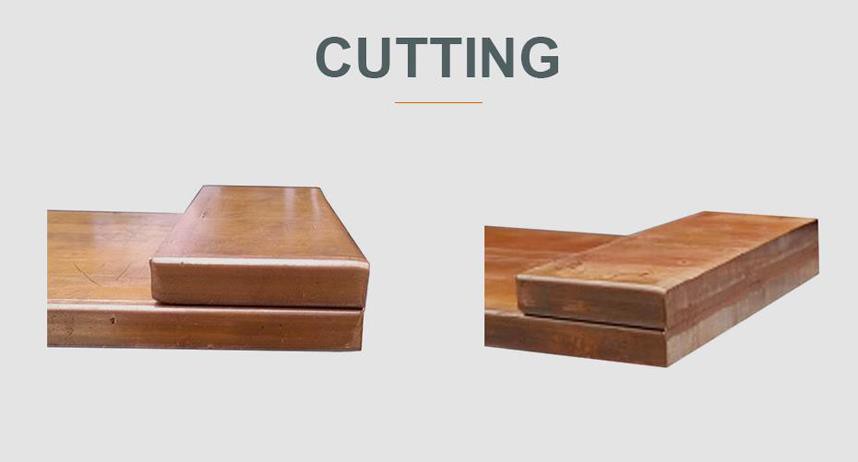

Three Unit Bara İşleme Makinesi With Manual Control 303U-3-C is an LT bara makinesi solution for integrated delme, kesme and bükme in one workstation. It is intended for low- and medium-volume electrical fabrication in Türkiye and international markets. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
Teknik Özellikler
Item | Model |
303U-3-C | |
Nominal force (kn) | 300 |

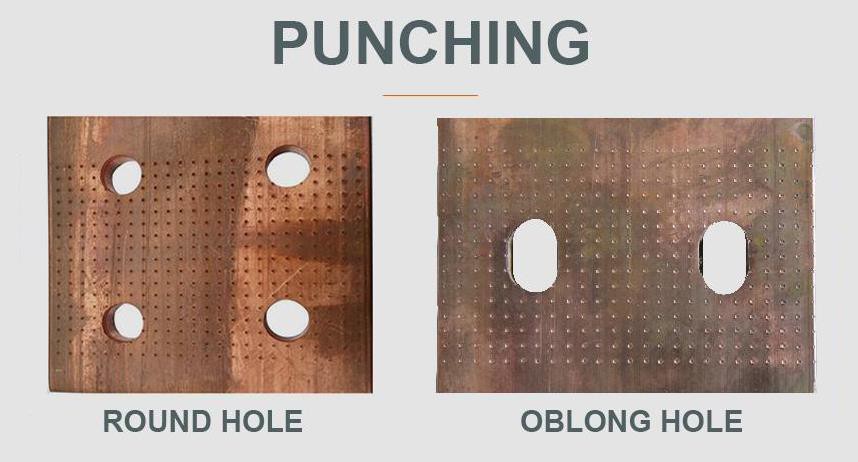

Delme dia. range (mm) | ф4.3～ф25 |
Max.thickness (mm) | 12 |
Max.width (mm) | 150 |
Max.kesme thickness (mm) | 12 |
Max.kesme width (mm) | 150 |

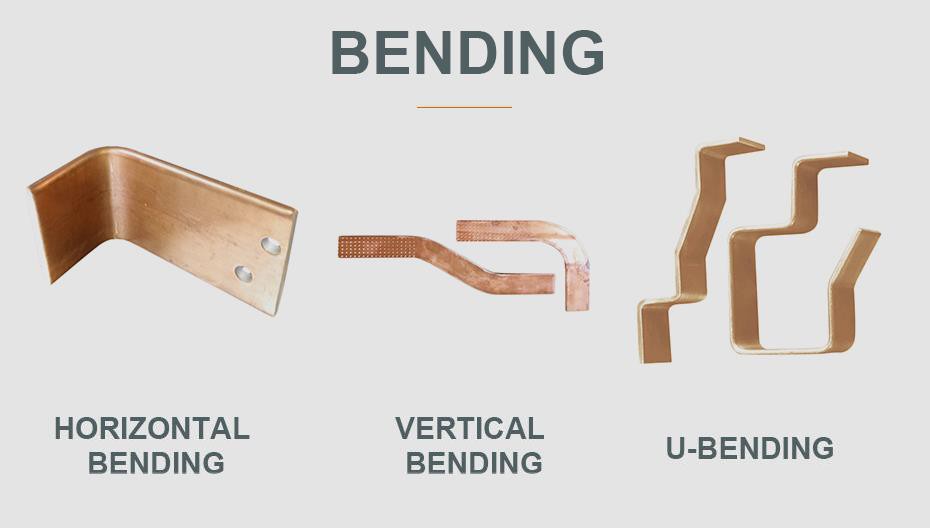

Max.horizontal bükme width (mm) | 150 |
Max.horizontal bükme thickness (mm) | 12 |
Max.vertical bükme size (mm) | 10×100 |
Power (kw) | 1×4KW |
Table size (mm) | 1650×1050 |
Outside dimension (mm) | 1720×1220×1220 |
Container size (mm) | 1800×1300×1430 |
Total weight (kg) | 1220KG |
Uygulamas
This model is applicable to low- and medium-volume electrical fabrication. Suitability depends on the final workpiece drawing and production target.
Ürün Images and Video
Sık Sorulan Sorular
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the makinesi process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
