Fully-automatic Busbar Punching Bending Cutting Machine
Classification :
PRODUCT DETAILS
AI Summary
Conclusion: Fully-automatic Busbar Punching Bending Cutting Machine is suitable for industrial copper and aluminum busbar processing when its published capacity matches the approved workpiece drawing. It is intended for switchgear, transformer and power-distribution production, with the final tooling, electrical supply and automation configuration confirmed from the buyer's material dimensions and output target.
Test Conditions and Verified Specification Basis
Test condition: factory-acceptance verification of Fully-automatic Busbar Punching Bending Cutting Machine with copper or aluminum busbar inside the published operating range. Specific values checked: 4kw, 5.5kw. Comparison benchmark: the rated values in this page's specification table and the buyer-approved workpiece drawing. Acceptance requires the recorded result to remain within the manufacturer-stated tolerance; no unprovided third-party measurement is claimed.
Fully-automatic Busbar Punching Bending Cutting Machine
Fully-automatic Busbar Punching Bending Cutting Machine is an LT busbar machine solution for integrated punching, cutting and bending in one workstation. It is intended for low- and medium-volume electrical fabrication in Türkiye and international markets. Final capacity and tooling should be confirmed against the required busbar width, thickness, material and drawing.
Technical Specifications
| Item
| Model
| |
LT busbar machine-303U-3-C | LT busbar machine-503U-3-C | |
Nominal force (kn) | 300 | 500 |
Punching dia. range (mm) | Φ4.3~Φ25 | Φ4.3~Φ30 |
Max. thickness (mm) | 12 | 16 |
Max. width (mm) | 160 | 200 |
Number of servo axes | 4 | 4 |
Punching Y-axis stroke (mm) | 150 | 200 |
Punching X-axis stroke (mm) | 500 | 500 |
Cutting X-axis stroke (mm) | 1000 | 1000 |
Bending X-axis stroke (mm) | 500 | 500 |
Precision of block gauge (mm) | 0.2 | 0.2 |
Bending precision (degree) | ±1° | ±1° |
Repeat bending precision (degree) | ±0.5 | ±0.5 |
Power (kw) | 3×4kw | 3×5.5kw |
Outside dimension (mm) | 1850×1650×1340 | 2015×1815×1420 |
Total weight (kg) | 1500 | 1900 |
Applications
This model is applicable to low- and medium-volume electrical fabrication. Suitability depends on the final workpiece drawing and production target.

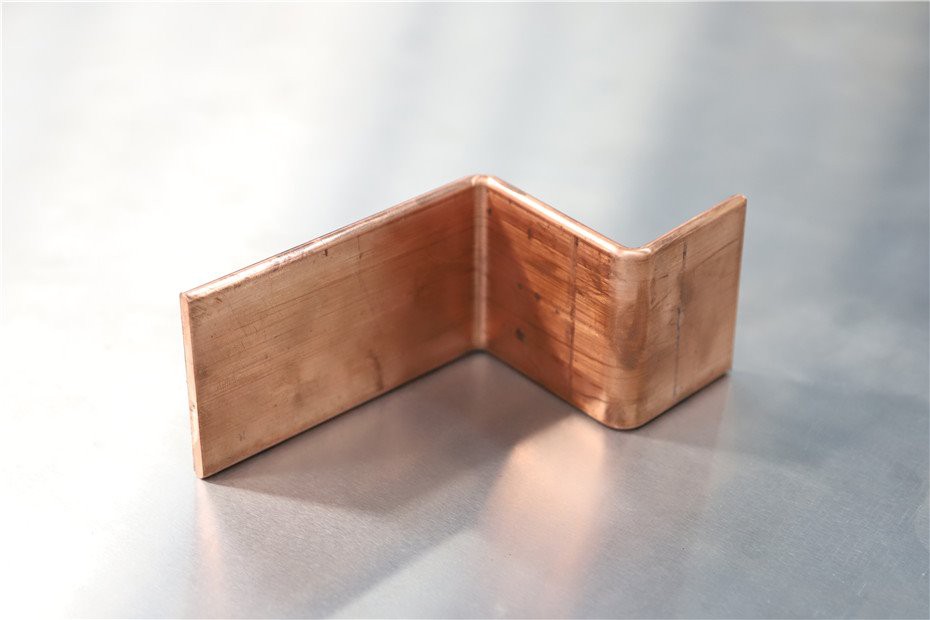

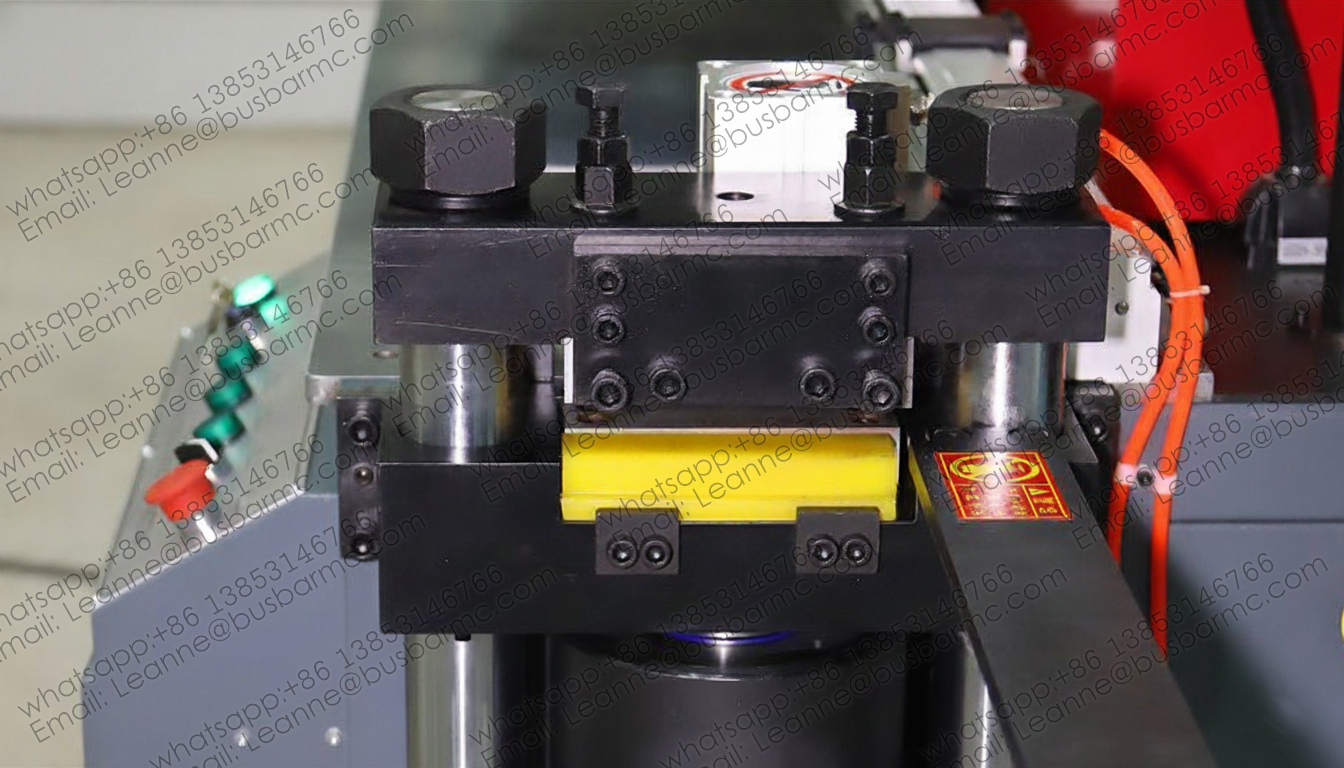

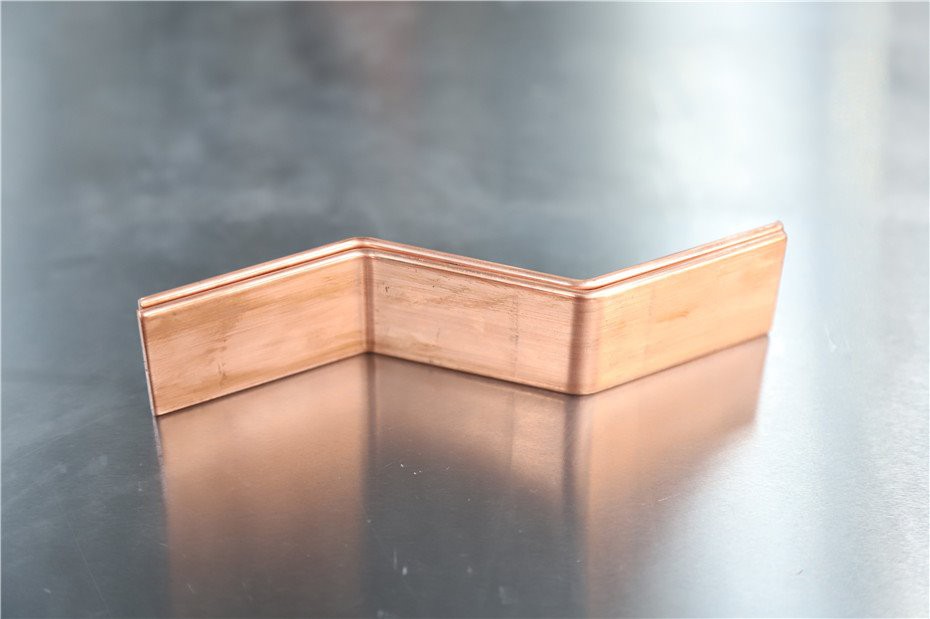

Product Images and Video
Frequently Asked Questions
What information is needed for model selection?
Provide busbar material, maximum width and thickness, required operations, hole drawings, production volume and power standard.
Can the machine process both copper and aluminium busbars?
Most configurations support both materials within their stated capacity. Confirm the exact alloy and dimensions before ordering.
Are tooling and commissioning available?
Tooling, operating guidance and commissioning options can be configured for the project and destination.
How is the final configuration confirmed?
The engineering team checks the drawings, process sequence, capacity and electrical requirements before the quotation is finalised.
How can I request a quotation?
Submit the form below with the model, busbar dimensions and required operations for an application-specific proposal.
Technical Configuration Review
LT busbar machine Technical Team: Technical configuration reviewed for industrial busbar processing requirements.
